Exploring Capitaine Train dataset

Tuesday, Apr 28, 2015 | 10 minute read

David Pilato

Recently I saw a tweet where Capitaine Train team started to open data they have collected and enriched or corrected.

Ouvrez, ouvrez, les données structurées. Capitaine Train libère les gares : https://t.co/y6DjWsbALF #opendata
— Trainline France (@trainline_fr) April 23, 2015

I decided to play a bit with ELK stack and create a simple recipe which can be used with any other CSV like data.

Prerequisites

You will need:

Logstash : I’m using 1.5.0-rc3 .
Elasticsearch : I’m using 1.5.2
Kibana : I’m using 4.0.2 Mac version

Download the dataset

wget https://raw.githubusercontent.com/capitainetrain/stations/master/stations.csv

What does it look like?

head -3 stations.csv

id;name;slug;uic;uic8_sncf;longitude;latitude;parent_station_id;is_city;country;is_main_station;time_zone;is_suggestable;sncf_id;sncf_is_enabled;idtgv_id;idtgv_is_enabled;db_id;db_is_enabled;idbus_id;idbus_is_enabled;ouigo_id;ouigo_is_enabled;trenitalia_id;trenitalia_is_enabled;ntv_id;ntv_is_enabled;info:fr;info:en;info:de;info:it;same_as
1;Château-Arnoux—St-Auban;chateau-arnoux-st-auban;;;6.0016250000;44.0817900000;;t;FR;f;Europe/Paris;f;FRAAA;t;;f;;f;;f;;f;;f;;f;;;;;
2;Château-Arnoux—St-Auban;chateau-arnoux-st-auban;8775123;87751230;5.997342;44.061499;1;f;FR;t;Europe/Paris;t;FRCAA;t;;f;8700156;f;;f;;f;;f;;f;;;;;

So it’s a CSV file containing some information that might worth to explore:

name: obviously the name of the train station
longitude and latitude: location
country: the country ISO code (2 letters)
xxx_is_enabled: true if xxx offer exists in the current train station (1 letter boolean value)

Processing with logstash

Let’s start with a blank logstash configuration file station.conf which will process our standard input and print it on standard output using ruby debug codec :

input {
   stdin {}
}

filter {
}

output {
   stdout { codec => rubydebug }
}

Launch this a first time and make sure logstash is working fine:

head -2 station.csv | bin/logstash -f station.conf

You should see something like:

Logstash startup completed
{
       "message" => "id;name;slug;uic;uic8_sncf;longitude;latitude;parent_station_id;is_city;country;is_main_station;time_zone;is_suggestable;sncf_id;sncf_is_enabled;idtgv_id;idtgv_is_enabled;db_id;db_is_enabled;idbus_id;idbus_is_enabled;ouigo_id;ouigo_is_enabled;trenitalia_id;trenitalia_is_enabled;ntv_id;ntv_is_enabled;info:fr;info:en;info:de;info:it;same_as",
      "@version" => "1",
    "@timestamp" => "2015-04-27T11:31:14.329Z",
          "host" => "MacBook-Air-de-David-2.local"
}
{
       "message" => "1;Château-Arnoux—St-Auban;chateau-arnoux-st-auban;;;6.0016250000;44.0817900000;;t;FR;f;Europe/Paris;f;FRAAA;t;;f;;f;;f;;f;;f;;f;;;;;",
      "@version" => "1",
    "@timestamp" => "2015-04-27T11:31:14.330Z",
          "host" => "MacBook-Air-de-David-2.local"
}
Logstash shutdown completed

CSV parsing

We have a CSV file so we should use here the CSV filter plugin and define <code>separator</code> as ; instead of default , and also define the name of fields we want to generate instead of default column_1, column_2… using <code>columns</code> parameter :

csv {
    separator => ";"
    columns => [
      "id","name","slug","uic","uic8_sncf","longitude","latitude","parent_station_id","is_city","country",
      "is_main_station","time_zone","is_suggestable","sncf_id","sncf_is_enabled","idtgv_id","idtgv_is_enabled",
      "db_id","db_is_enabled","idbus_id","idbus_is_enabled","ouigo_id","ouigo_is_enabled",
      "trenitalia_id","trenitalia_is_enabled","ntv_id","ntv_is_enabled","info_fr",
      "info_en","info_de","info_it","same_as"
    ]
}

When running it again, it now generates a more strutured data:

Logstash startup completed
{
              "message" => [
    [0] "id;name;slug;uic;uic8_sncf;longitude;latitude;parent_station_id;is_city;country;is_main_station;time_zone;is_suggestable;sncf_id;sncf_is_enabled;idtgv_id;idtgv_is_enabled;db_id;db_is_enabled;idbus_id;idbus_is_enabled;ouigo_id;ouigo_is_enabled;trenitalia_id;trenitalia_is_enabled;ntv_id;ntv_is_enabled;info:fr;info:en;info:de;info:it;same_as"
],
             "@version" => "1",
           "@timestamp" => "2015-04-27T11:40:57.936Z",
                 "host" => "MacBook-Air-de-David-2.local",
                   "id" => "id",
                 "name" => "name",
                 "slug" => "slug",
                  "uic" => "uic",
            "uic8_sncf" => "uic8_sncf",
            "longitude" => "longitude",
             "latitude" => "latitude",
    "parent_station_id" => "parent_station_id",
              "is_city" => "is_city",
              "country" => "country",
      "is_main_station" => "is_main_station",
            "time_zone" => "time_zone",
       "is_suggestable" => "is_suggestable",
              "sncf_id" => "sncf_id",
      "sncf_is_enabled" => "sncf_is_enabled",
             "idtgv_id" => "idtgv_id",
     "idtgv_is_enabled" => "idtgv_is_enabled",
                "db_id" => "db_id",
        "db_is_enabled" => "db_is_enabled",
             "idbus_id" => "idbus_id",
     "idbus_is_enabled" => "idbus_is_enabled",
             "ouigo_id" => "ouigo_id",
     "ouigo_is_enabled" => "ouigo_is_enabled",
        "trenitalia_id" => "trenitalia_id",
"trenitalia_is_enabled" => "trenitalia_is_enabled",
               "ntv_id" => "ntv_id",
       "ntv_is_enabled" => "ntv_is_enabled",
              "info_fr" => "info:fr",
              "info_en" => "info:en",
              "info_de" => "info:de",
              "info_it" => "info:it",
              "same_as" => "same_as"
}
{
              "message" => [
    [0] "1;Château-Arnoux—St-Auban;chateau-arnoux-st-auban;;;6.0016250000;44.0817900000;;t;FR;f;Europe/Paris;f;FRAAA;t;;f;;f;;f;;f;;f;;f;;;;;"
],
             "@version" => "1",
           "@timestamp" => "2015-04-27T11:40:57.938Z",
                 "host" => "MacBook-Air-de-David-2.local",
                   "id" => "1",
                 "name" => "Château-Arnoux—St-Auban",
                 "slug" => "chateau-arnoux-st-auban",
                  "uic" => nil,
            "uic8_sncf" => nil,
            "longitude" => "6.0016250000",
             "latitude" => "44.0817900000",
    "parent_station_id" => nil,
              "is_city" => "t",
              "country" => "FR",
      "is_main_station" => "f",
            "time_zone" => "Europe/Paris",
       "is_suggestable" => "f",
              "sncf_id" => "FRAAA",
      "sncf_is_enabled" => "t",
             "idtgv_id" => nil,
     "idtgv_is_enabled" => "f",                "db_id" => nil,
        "db_is_enabled" => "f",
             "idbus_id" => nil,
     "idbus_is_enabled" => "f",
             "ouigo_id" => nil,
     "ouigo_is_enabled" => "f",
        "trenitalia_id" => nil,
"trenitalia_is_enabled" => "f",
               "ntv_id" => nil,
       "ntv_is_enabled" => "f",
              "info_fr" => nil,
              "info_en" => nil,
              "info_de" => nil,
              "info_it" => nil,
              "same_as" => nil
}

Skip header

We can see that we are still parsing the header so it will be sent to elasticsearch which is obviously something we dont want. We can use Logstash conditionals for that and Drop filter plugin :

if [id] == "id" {
 drop { }
} else {
 # continue processing data
}

Remove duplicated fields

We can see that we have some duplicated contents and some fields are not really needed for our use case:

      "message" => [
    [0] "id;name;slug;uic;uic8_sncf;longitude;latitude;parent_station_id;is_city;country;is_main_station;time_zone;is_suggestable;sncf_id;sncf_is_enabled;idtgv_id;idtgv_is_enabled;db_id;db_is_enabled;idbus_id;idbus_is_enabled;ouigo_id;ouigo_is_enabled;trenitalia_id;trenitalia_is_enabled;ntv_id;ntv_is_enabled;info:fr;info:en;info:de;info:it;same_as"
],
     "@version" => "1",
   "@timestamp" => "2015-04-27T11:40:57.936Z",
      "host" => "MacBook-Air-de-David-2.local"

So we can remove message, @version and @timestamp using Mutate filter plugin and its remove_field . You can put that in the else part:

mutate {
 remove_field => [ "message", "host", "@timestamp", "@version" ]
}

Convert numbers to numbers

We have seen that the CSV plugin has generated latitude and longitude fields as strings:

"longitude" => "6.0016250000",
 "latitude" => "44.0817900000",

Using the mutate filter, we can convert our fields to float:

mutate {
 convert => { "longitude" => "float" }
 convert => { "latitude" => "float" }
}

This will now output:

"longitude" => 6.001625,
 "latitude" => 44.08179,

Build a location data structure

Elasticsearch uses a specific data structure called geo_point to deal with geographic location coordinates.

So a point should look like:

"location": {
 "lat": x.xxx,
 "lon": y.yyy
}

It means that we need to change our latitude and longitude fields to inner fields inside a new location field. We can use mutate <code>rename</code> parameter for this:

mutate {
 rename => {
  "longitude" => "[location][lon]"
  "latitude" => "[location][lat]"
 }
}

This now produces:

             "location" => {
    "lon" => 6.001625,
    "lat" => 44.08179
}

Convert booleans to booleans`^H^H^H^H^H^H^H^H` strings

We have a lot of fields which looks as boolean fields like:

          "is_city" => "t",
  "is_main_station" => "f",
   "is_suggestable" => "f",
  "sncf_is_enabled" => "t",
 "idtgv_is_enabled" => "f",

Sadly, the mutate convert parameter does not support yet boolean option. It will be merged really soon with #22 .

For now, we are going to use elasticsearch boolean parsing which can detect a false value if provided as "false", "off" and "no".

To do that, we can use <code>gsub</code> mutate parameter :

mutate {
 gsub => [
  "is_city", "t", "true",
  "is_city", "f", "false",
  "is_main_station", "t", "true",
  "is_main_station", "f", "false",
  "is_suggestable", "t", "true",
  "is_suggestable", "f", "false",
  "sncf_is_enabled", "t", "true",
  "sncf_is_enabled", "f", "false",
  "idtgv_is_enabled", "t", "true",
  "idtgv_is_enabled", "f", "false",
  "db_is_enabled", "t", "true",
  "db_is_enabled", "f", "false",
  "idbus_is_enabled", "t", "true",
  "idbus_is_enabled", "f", "false",
  "ouigo_is_enabled", "t", "true",
  "ouigo_is_enabled", "f", "false",
  "trenitalia_is_enabled", "t", "true",
  "trenitalia_is_enabled", "f", "false",
  "ntv_is_enabled", "t", "true",
  "ntv_is_enabled", "f", "false"
 ]
}

It will now transform our booleans to:

          "is_city" => "true",
  "is_main_station" => "false",
   "is_suggestable" => "false",
  "sncf_is_enabled" => "true",
 "idtgv_is_enabled" => "false",

Indexing into elasticsearch

Now we have our data generated:

{
                       "id" => "1",
                     "name" => "Château-Arnoux—St-Auban",
                     "slug" => "chateau-arnoux-st-auban",
                      "uic" => nil,
                "uic8_sncf" => nil,
        "parent_station_id" => nil,
                  "is_city" => "true",
                  "country" => "FR",
          "is_main_station" => "false",
                "time_zone" => "Europe/Paris",
           "is_suggestable" => "false",
                  "sncf_id" => "FRAAA",
          "sncf_is_enabled" => "true",
                 "idtgv_id" => nil,
         "idtgv_is_enabled" => "false",
                    "db_id" => nil,
            "db_is_enabled" => "false",
                 "idbus_id" => nil,
         "idbus_is_enabled" => "false",
                 "ouigo_id" => nil,
         "ouigo_is_enabled" => "false",
            "trenitalia_id" => nil,
    "trenitalia_is_enabled" => "false",
                   "ntv_id" => nil,
           "ntv_is_enabled" => "false",
                  "info_fr" => nil,
                  "info_en" => nil,
                  "info_de" => nil,
                  "info_it" => nil,
                  "same_as" => nil,
                 "location" => {
        "lon" => 6.001625,
        "lat" => 44.08179
    }
}

Let’s say that you have already elasticsearch up and running:

bin/elasticsearch

Defining our mapping

We need to create the right mapping to define our fields. As we have a lot of fields named with *_is_enabled or is_* we can use an index template to define those automatically as booleans when field name is *is_*. Also, it’s definitely better to use not_analyzed strings to do aggregations so we can define a sub field raw which is not analyzed at index time for each string field.

This would lead us to the following index template stations_template.json:

{
  "template": "stations",
  "order":    1,
  "settings": {
    "number_of_shards": 1
  },
  "mappings": {
    "station": {
      "dynamic_templates": [
         {
            "string_fields": {
               "mapping": {
                  "index": "analyzed",
                  "omit_norms": true,
                  "type": "string",
                  "fields": {
                     "raw": {
                        "index": "not_analyzed",
                        "ignore_above": 256,
                        "type": "string"
                     }
                  }
               },
               "match_mapping_type": "string",
               "match": "*"
            }
         }, {
            "boolean_fields": {
               "mapping": {
                  "type": "boolean"
               },
               "match": "*is_*"
            }
         }
      ],
      "_all": {
        "enabled": false
      },
      "properties": {
       "location": {
          "type": "geo_point"
        }
      }
    }
  }
}

Connect logstash and elasticsearch

We are going to obviously use elasticsearch output plugin to send our data to elasticsearch cluster. We will:

use http protocol
index our data in stations index and use station type
extract elasticsearch _id field from id event field
use our stations template defined in stations_template.json local file

Let’s add this as an output in our logstash configuration file:

elasticsearch {
 protocol => "http"
 host => "localhost"
 index => "stations"
 index_type => "station"
 document_id => "%{id}"
 template => "stations_template.json"
 template_name => "stations"
}

Test again as usual and you should be able to see your document in elasticsearch:

curl "http://localhost:9200/stations/station/_search?pretty"

{
   "took": 1,
   "timed_out": false,
   "_shards": {
      "total": 1,
      "successful": 1,
      "failed": 0
   },
   "hits": {
      "total": 1,
      "max_score": 1,
      "hits": [
         {
            "_index": "sncf",
            "_type": "gare",
            "_id": "1",
            "_score": 1,
            "_source": {
               "id": "1",
               "name": "Château-Arnoux—St-Auban",
               "slug": "chateau-arnoux-st-auban",
               "uic": null,
               "uic8_sncf": null,
               "parent_station_id": null,
               "is_city": "true",
               "country": "FR",
               "is_main_station": "false",
               "time_zone": "Europe/Paris",
               "is_suggestable": "false",
               "sncf_id": "FRAAA",
               "sncf_is_enabled": "true",
               "idtgv_id": null,
               "idtgv_is_enabled": "false",
               "db_id": null,
               "db_is_enabled": "false",
               "idbus_id": null,
               "idbus_is_enabled": "false",
               "ouigo_id": null,
               "ouigo_is_enabled": "false",
               "trenitalia_id": null,
               "trenitalia_is_enabled": "false",
               "ntv_id": null,
               "ntv_is_enabled": "false",
               "info_fr": null,
               "info_en": null,
               "info_de": null,
               "info_it": null,
               "same_as": null,
               "location": {
                  "lon": 6.001625,
                  "lat": 44.08179
               }
            }
         }
      ]
   }
}

Inject them all

It’s now time to inject all data we have. Instead of debugging each line, we can change the stdout codec to <code>dots</code> instead of rubydebug.

At the end, here is our logstash configuration file:

input {
 stdin {}
}

filter {
 csv {
     separator => ";"
     columns => [
       "id","name","slug","uic","uic8_sncf","longitude","latitude","parent_station_id","is_city","country",
       "is_main_station","time_zone","is_suggestable","sncf_id","sncf_is_enabled","idtgv_id","idtgv_is_enabled",
       "db_id","db_is_enabled","idbus_id","idbus_is_enabled","ouigo_id","ouigo_is_enabled",
       "trenitalia_id","trenitalia_is_enabled","ntv_id","ntv_is_enabled","info_fr",
       "info_en","info_de","info_it","same_as"
     ]
 }

 if [id] == "id" {
  drop { }
 } else {
     mutate {
   remove_field => [ "message", "host", "@timestamp", "@version" ]
     }

  mutate {
   convert => { "longitude" => "float" }
   convert => { "latitude" => "float" }
  }

  mutate {
   rename => {
    "longitude" => "[location][lon]"
    "latitude" => "[location][lat]"
   }
  }

  mutate {
   gsub => [
    "is_city", "t", "true",
    "is_city", "f", "false",
    "is_main_station", "t", "true",
    "is_main_station", "f", "false",
    "is_suggestable", "t", "true",
    "is_suggestable", "f", "false",
    "sncf_is_enabled", "t", "true",
    "sncf_is_enabled", "f", "false",
    "idtgv_is_enabled", "t", "true",
    "idtgv_is_enabled", "f", "false",
    "db_is_enabled", "t", "true",
    "db_is_enabled", "f", "false",
    "idbus_is_enabled", "t", "true",
    "idbus_is_enabled", "f", "false",
    "ouigo_is_enabled", "t", "true",
    "ouigo_is_enabled", "f", "false",
    "trenitalia_is_enabled", "t", "true",
    "trenitalia_is_enabled", "f", "false",
    "ntv_is_enabled", "t", "true",
    "ntv_is_enabled", "f", "false"
   ]
  }

 }
}

output {
 stdout { codec => dots }
 elasticsearch {
  protocol => "http"
  host => "localhost"
  index => "stations"
  index_type => "station"
  document_id => "%{id}"
  template => "stations_template.json"
  template_name => "stations"
 }
}

Let’s use it:

cat station.csv | bin/logstash -f station.conf

At the end, check that everything has been correctly indexed:

curl "http://localhost:9200/sncf/gare/_search?pretty&size=0"

{
   "took": 1,
   "timed_out": false,
   "_shards": {
      "total": 1,
      "successful": 1,
      "failed": 0
   },
   "hits": {
      "total": 21461,
      "max_score": 0,
      "hits": []
   }
}

Kibana FTW

Start your kibana instance, open kibana .

Settings

Configure your stations index:

Discover your data

If not already set, define in discover your stations index:

Then choose fields you want to display:

And save your search:

Visualize your data

Create a new visualization and choose Pie chart:

Select your saved search:

Split the slices using country.raw field so you will display number of train stations broken per country code.

Save your visualization and create a new Pie chart on idtgv_is_enabled field:

Save your visualization and create a new Tile map:

Select a Geohash aggregation on location field and increase Precision to 4:

Don’t forget to save it!

You can build as many visualization you need.

Put them all on the same page

Open Dashboard and add all your visualizations:

And your saved search:

Arrange your dashboard and play with it!

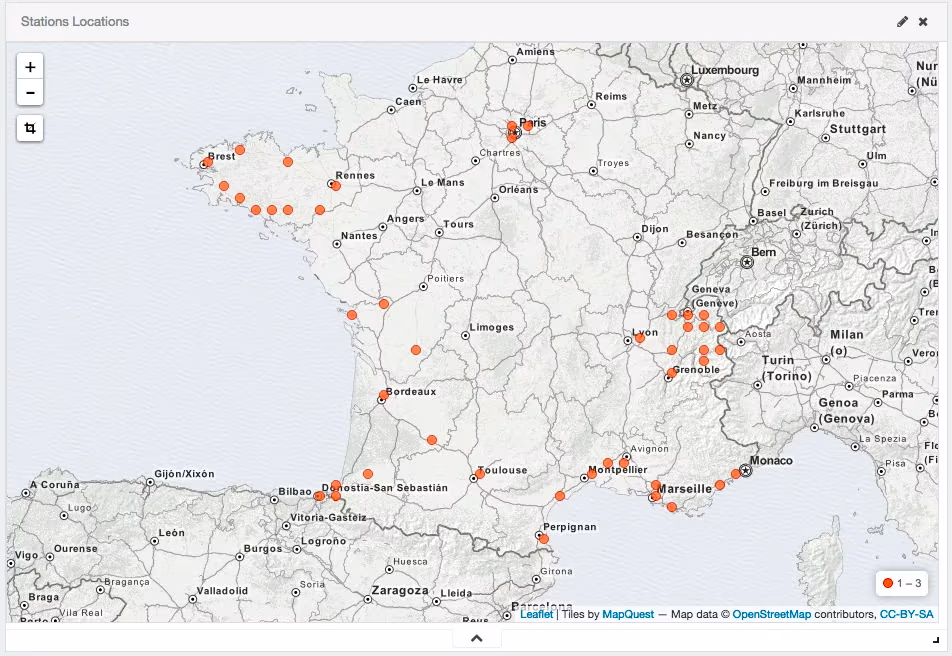

For example, if you click on FR in the country pie and then select T on IDTGV pie, you will be able to display all IDTGV stations located in France.

Previous page Devoxx France 2015

Next page Using Log4J2 with Hibernate 4
